RB EVO HONDA CBR1000RR, 2004-2022
EMISSIONS AND NOISE REGULATIONS
CALIFORNIA CUSTOMERS WARNING: You acknowledge and agree that the selected products that you are about to purchase from Rapid Bike USA affecting factory-installed emission equipment are intended FOR RACING USE ONLY, i.e. for use and installation on racing vehicles to be used on closed courses only, and MUST NOT be used on roads or installed on vehicles subject to emission control requirements. You agree NOT to use or install the product(s) on vehicles registered or used on California public roads. By purchasing this product you confirm that you have read and understood this Warning and you agree that you will comply with its requirements. Any use inconsistent with the above will void the manufacturer’s warranty without further notice. Our products are NOT EPA or CARB approved.

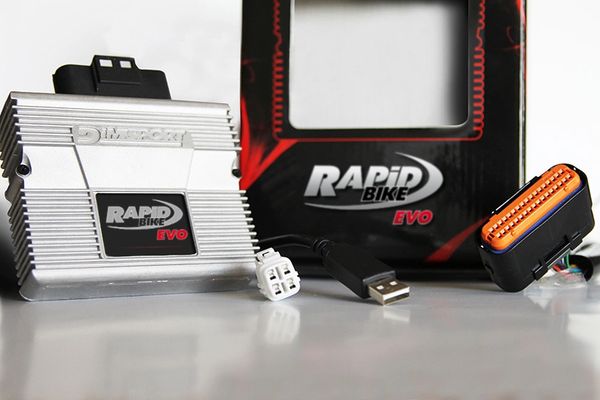

Kit including the Rapid Bike Evo module , USB cable a model specific wiring harness.
The Evo module
manages up to 8 injectors and modulates the signal up to two O2 sensors (up to
2 lambdas). The purpose of the O2 sensor (lambda) modulation is to prevent the
stock ECU from recognizing the adjustment applied by the Rapid Bike module to
the injection map without any further attempts to re-set the stock parameters
matching the criteria fixed by the restrictive exhaust gas emission laws.
When riding the motorcycle, the self-adaptive feature determines the automatic self-correction of the air/fuel ratio maps: this active management is added up to the pre-set parameters. The adjustments set by Rapid Bike EVO improve the engine efficiency in order to reach the best performance. The self-correction process is set in multipoint technology according to RPM and TPS, for the whole range of the engine working, even when the original RPM limiter is raised (when available).
Modulating the stock O2 sensor (lambda) signal is a technology far more advanced than the so called “O2 sensor eliminator” (or any other similar device used by the competitors) since they send a static/constant signal which is in conflict with the typical behavior of the lambda sensors, therefore causing the main ECU to perceive such a constant signal as a mistake to be corrected. Thanks to Rapid Bike exclusive technology for the modulation of the stock lambda signal the main ECU considers this behavior as standard; therefore it will not try to re-set the stock engine parameters.
The Evo module’ s most important benefit is the so-called Auto-adaptive feature, that is the ability to correct automatically the injection map adjustment by reading the signal of the stock O2 sensor (lambda) while riding the bike.
